Product Characteristics
Description

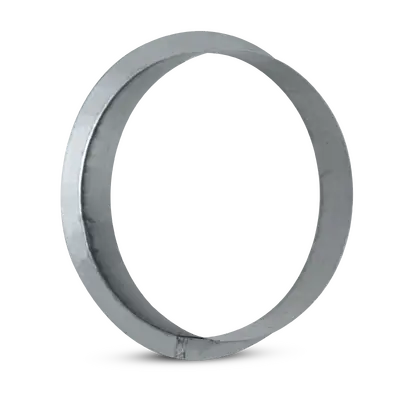

IL Ring (IL) – Flat Pressed Branch for Diffuser & Plenum Applications
The IL Ring (IL) is a precision-formed flat pressed branch component designed for use in ventilation systems, particularly in plenum boxes and air diffuser installations. Manufactured from galvanised steel, it provides a reliable and practical solution for creating connection points in air distribution systems.
Key Benefits
-
Ideal for Diffuser Installations
Specifically designed for use in air supply diffusers, wall-mounted, and ceiling-mounted units, ensuring a professional and secure connection. -
Perfect for Plenum & Expansion Boxes
Commonly used in the fabrication of expansion boxes, helping optimise airflow distribution within HVAC systems. -
Lightweight & Compact Design
Flat pressed construction ensures easy handling, reduced weight, and compact installation, making it practical for on-site assembly. -
Flexible Configuration Options
Available in variants with female flanges or EPDM gaskets, providing flexibility for different installation and sealing requirements. -
Designed for Modern Air Distribution Systems
Compatible with systems such as FLX plenum boxes and concealed duct installations, including suspended ceilings and raised floors. -
Cost-Effective Fabrication Component
The version with bare edges (IL) allows easy integration into custom-made ventilation components and assemblies.
Applications
- Plenum box fabrication
- Air diffuser connections
- Wall and ceiling air distribution systems
- HVAC air supply systems
- Concealed duct installations (e.g. ceiling voids and raised floors)
Product Features
- Flat pressed straight branch design
- Manufactured from galvanised steel
- Available with optional flange and gasket configurations
- Compact, lightweight construction
- Suitable for a range of duct diameters (e.g. 100Ø - 630Ø and below)
