Product Characteristics
Description

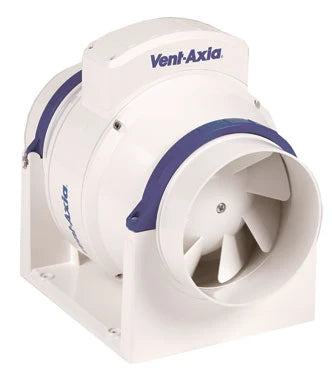

ACM Mixed Flow In-Line Fans – Complete Range (Ø100–315 mm)
The ACM Mixed Flow In-Line Fan range offers a complete ducted ventilation solution, combining compact design with high performance across a wide size range from Ø100 mm to Ø315 mm. Engineered for efficiency, flexibility, and ease of installation, these fans deliver superior airflow and pressure performance, making them ideal for residential, commercial, and light industrial applications.
Key Benefits
High Performance Airflow
- Delivers up to 2.5 times the pressure of traditional axial fans, ensuring strong air movement even in longer or complex duct systems.
- Mixed flow design combines axial and centrifugal advantages for efficient, consistent performance.
Complete Size Range for Every Application
- Small range (Ø100–200 mm): ideal for residential and light commercial ventilation
- Larger range (Ø250–315 mm): suited for higher airflow commercial and industrial systems
Compact & Flexible Installation
- Designed for installation in duct systems with limited space, including ceiling voids
- Suitable for horizontal or vertical mounting
- Features detachable spigots and mounting brackets for quick connection and positioning
User-Friendly Design & Maintenance
- Removable motor core (100–200 range) allows easy cleaning without removing ductwork
- Rotating motor body simplifies installation in tight or awkward spaces
- Larger models include robust metal housings for durability and service access
Energy Efficient & Quiet Operation
- Designed for low noise performance, backed by independent sound testing
- Compatible with variable speed controllers for system optimisation
- Helps reduce energy consumption while maintaining required airflow
Durability & Construction
- Available with polymer casing (100–200 models) and galvanised steel housing (250–315 models)
- Thermal overload protection for safe and reliable operation
- Rated up to IP44 (small models) and IP54 (large models) for protection against moisture and dust
- Designed for operating temperatures up to +50°C
Technical Overview
- Voltage: 220–240V / Single Phase / 50Hz
- Multi-speed motors (installation selectable)
- Optional timer versions (smaller models)
- Integrated mounting systems and controller compatibility
Applications
- Residential ventilation (bathrooms, kitchens, utility rooms)
- Commercial ducted systems
- Retail and hospitality ventilation
- Office and public buildings
- Light industrial air movement
