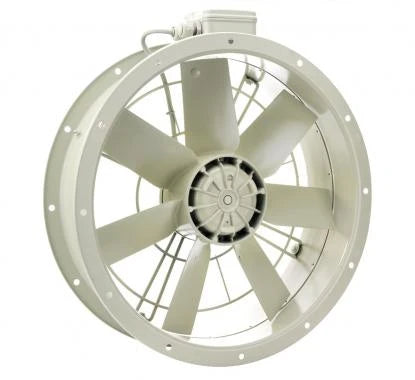

VENT AXIA ESC SHORT CASED AXIAL FAN, 4 POLE, SINGLE PHASE

ESC Fan – EuroSeries® Short Case Axial Fan

The ESC Fan (EuroSeries® Short Case Axial Fan) is a robust, high-performance ventilation solution designed for industrial and commercial air movement applications. Combining a compact short-case design with powerful airflow capability, it delivers reliable performance in both indoor and outdoor environments.

Key Benefits

High Performance Air Movement

• Equipped with die-cast aluminium impellers for efficient airflow and durability
• Designed to perform reliably even in abrasive or demanding air conditions

Fully Speed Controllable

• Compatible with a range of electronic and transformer speed controls
• Allows precise adjustment of airflow for system optimisation

Flexible Operation

• Most models are reversible, allowing use for both supply and extract systems
• Ideal for adaptable HVAC installations

Compact & Durable Design

• Short-case construction enables installation in restricted spaces
• Tough steel casing with epoxy paint finish ensures long-term durability

High-Quality Motor & Protection

• External rotor motor design for compact efficiency
• Class F insulation, suitable for temperatures from -40°C to +70°C
• IP54 protection rating, guarding against dust and moisture
• Thermal overload (Hot Spot) protection for safe and reliable operation
• Dynamically balanced components for smooth, low-vibration performance

Performance & Compliance

• Tested in accordance with BS848 performance standards
• Designed to deliver consistent airflow with controlled sound levels
• Low-noise operation when paired with appropriate speed control systems

Applications

• Industrial and commercial ventilation systems
• Warehouse and factory air movement
• HVAC supply and extract systems
• Roof and wall-mounted installations
• External or exposed environments

Product Features

• Short-case axial fan design
• Aluminium impeller for strength and efficiency
• Available in sizes typically from Ø315 mm to Ø800 mm
• Single-phase and three-phase options
• Compatible with a wide range of accessories and mounting solutions

System Integration

The ESC fan range is supported by a comprehensive selection of accessories, including:

• Speed controllers (electronic and transformer)
• Mounting feet, flanges, and flexible connectors
• Wire guards and louvre shutters
• Anti-vibration mounts and attenuators

This ensures easily configurable systems tailored to your project requirements.
