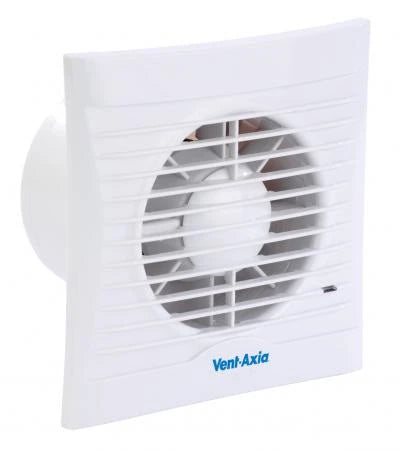

Silhouette Fan Range – Slimline Domestic Ventilation

Modern, Ultra-Slim Ventilation for Contemporary Spaces

The Silhouette fan range is designed to provide powerful, discreet ventilation for modern residential applications. Featuring an ultra-low profile grille, advanced controls, and quiet operation, the range delivers high performance while blending seamlessly into any interior.

Product Range Overview

Silhouette 100 (Bathroom & WC Ventilation)

Ultra-slim 17mm profile for minimal visual impact
Ideal for bathrooms, toilets, and en-suites
Available in multiple versions:
- Standard (B)
- Timer (T)
- Humidity (HT / H)
- PIR + Timer (TM)
- SELV low-voltage models for Zone 1 installations
Airflow up to 21 l/s (75 m³/h) [

Silhouette 125 (Bathroom / Utility Ventilation)

Slim 18mm contemporary grille design
Designed for bathrooms, toilets, and utility spaces
Options include:
- Standard (B)
- Timer (T)
- Humidistat (H) [
Performance up to 160 m³/h (45 l/s)

Silhouette 150 (Kitchen Ventilation)

Ultra-slim 19mm profile for kitchens
Designed for high extraction kitchen applications
Models include:
- Standard (X)
- Timer (XT)
- Humidistat (XH) High airflow up to 241 m³/h (67 l/s)

Key Features & Benefits

🎨 Ultra-Slim, Stylish Design

Low profile from 17–19mm across the range
Sleek grille blends into modern interiors
Ideal for visible installations

⚙️ Strong Airflow Performance

Range covers low to high extraction requirements
From bathroom ventilation to kitchen extraction
Optimised airflow using guide vane technology

🎛️ Smart Control Options

Available with:
- Overrun timers (5–30 minutes)
- Humidity sensors (60–90% RH)
- PIR occupancy control
Enhances energy efficiency and user convenience

🔇 Quiet & Comfortable Operation

Designed for low noise levels (approx. 30–43 dB(A))
Ideal for residential environments where comfort matters

🛡 Safe & Compliant

IPX4 rated (IPX7 for SELV models)
Fully compliant with Building Regulations Approved Document F
SELV option suitable for bathroom Zone 1 installations

🔄 Flexible Installation

Suitable for:
- Wall mounting
- Ceiling mounting
- Panel and window installations
Designed for horizontal or vertical positioning

Comparison Summary

Model	Application	Airflow	Profile	Key Options
Silhouette 100	Bathroom / WC	75 m³/h	17mm	SELV, Timer, Humidity, PIR
Silhouette 125	Bathroom / Utility	160 m³/h	18mm	Timer, Humidity
Silhouette 150	Kitchen	241 m³/h	19mm	Timer, Humidity

Applications

Bathrooms & en-suites
Toilets & cloakrooms
Kitchens
Utility rooms
Residential refurbishment & new builds
